Poster Overlays¶

The Overlay system automatically adds informational badges to your poster artwork — resolution, HDR format, audio codec, ratings, and more. These display in Plex on top of your existing posters.

How it works¶

Sync Library — cli_debrid matches its database items to Plex using IMDB/TMDB IDs
For each matched item, a customised poster is generated with badges applied
The modified poster is uploaded back to Plex, replacing the original
Original posters are backed up and can be restored at any time

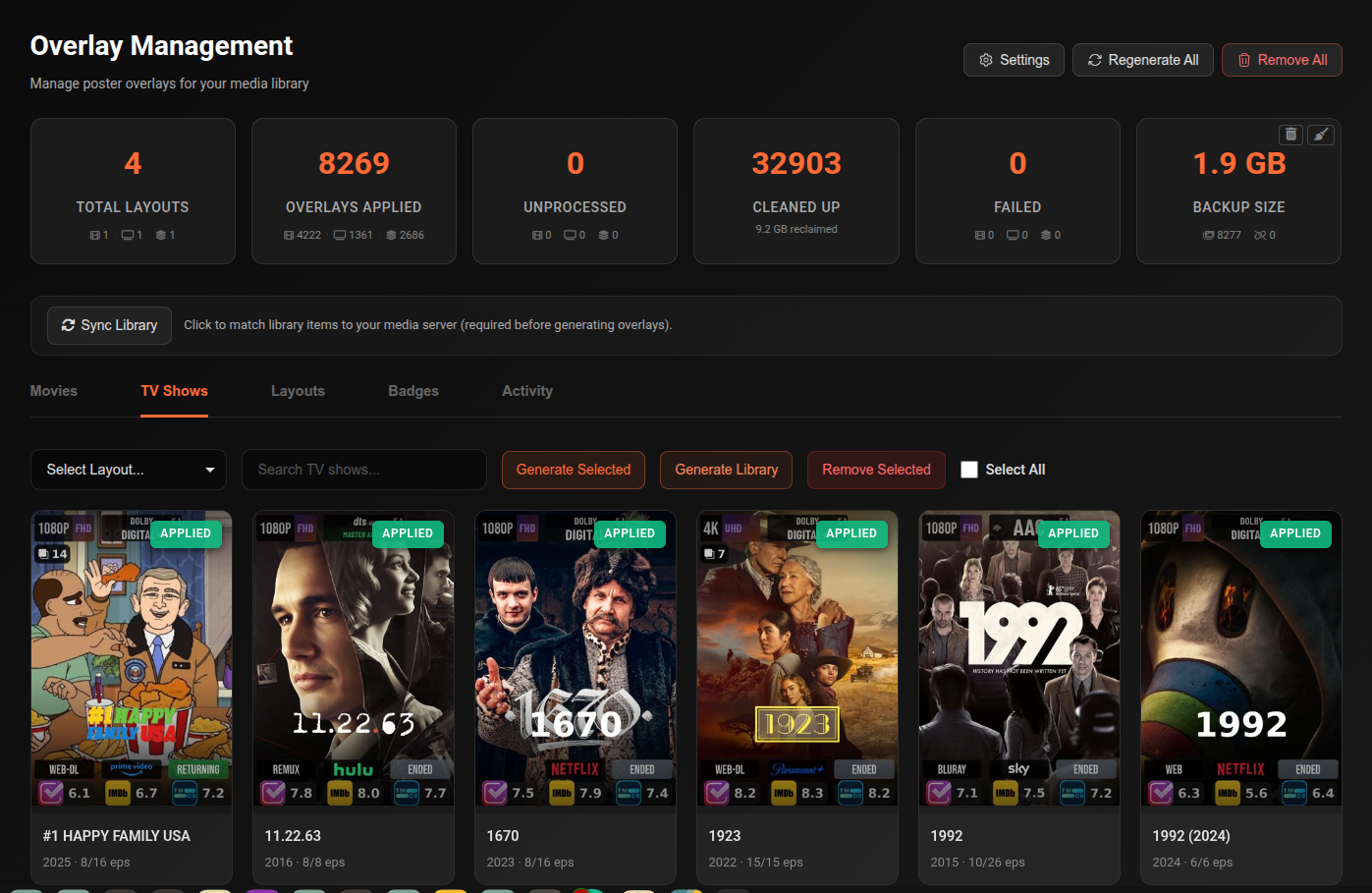

Statistics cards¶

The top row shows a live summary of your overlay state:

Card	Description
Total Layouts	Number of layouts defined, broken down by Movie/Show/Season
Overlays Applied	Items with an active overlay, broken down by type
Unprocessed	Items not yet processed — click to filter the grid to these items
Cleaned Up	Disk space reclaimed from old overlay files. Click ↺ to reset the counter.
Failed	Items where overlay generation failed — click to filter. Click ↺ to retry all.
Backup Size	Total size of backed-up original posters and orphaned backup count. Use the trash button to clean up orphaned backups, or the broom button to delete all backups and reset overlays to pending.

Sync Library¶

Before overlays can be applied, cli_debrid must match its database items to Plex entries using IMDB/TMDB IDs. Click Sync Library to run a full sync.

Required:

After first enabling overlays
After adding large amounts of new content
If overlays stop applying to certain items

A title+year fallback is used for items without IMDB/TMDB GUIDs.

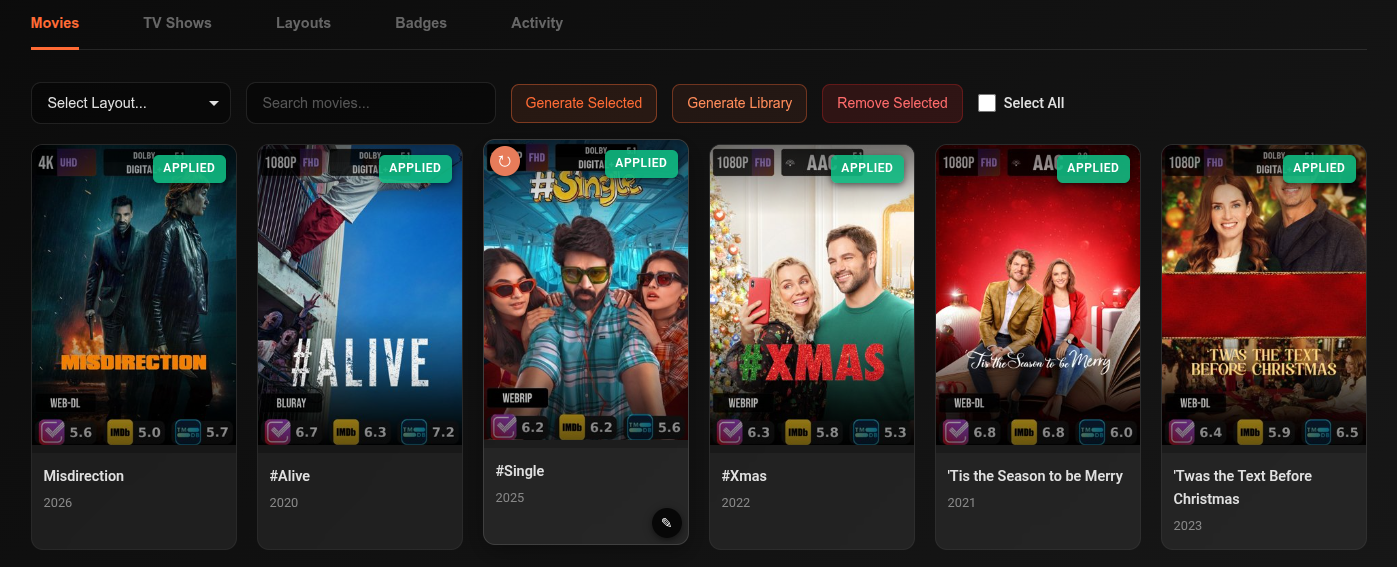

Movies tab¶

Shows all movies in a poster grid with their current overlay status.

Status badge	Meaning
Applied	Overlay is active on this poster
Pending	Queued for generation
Failed	Generation failed — reason shown below the poster
Not Started	Not yet queued

Controls:

Button	Description
Layout selector	Choose which layout to use when generating
Generate Library	Generate overlays for ALL movies in the database
Generate Selected	Generate overlays for checked items only
Remove Selected	Remove overlays and restore original posters for checked items
Select All	Select all visible items

Per-card actions (on hover):

Button	Description
↻ Regenerate	Regenerate this poster's overlay using the current library poster
✎ Poster Picker	Choose an alternative poster from TMDB, then apply overlay on top

Click a card to select/deselect it. Items with multiple versions show a version count badge.

The grid shows up to 300 items — use search to refine when your library is larger.

TV Shows tab¶

Same as Movies with two additional features per show card:

Seasons button — opens the Season Overlays modal to manage per-season posters
Unprocessed seasons badge — shows which season numbers still need overlays (e.g. S1 · S2 unprocessed). Click to open the Season modal directly.

Manage poster overlays for individual seasons of a show. Select a layout (or use Auto to pick the best available) and click Generate Library to apply across all seasons for all shows.

Layouts tab¶

Create and manage overlay layout configurations. A layout defines which badges to show, where they are positioned, and their visual style.

Layout actions:

Button	Description
Create Layout	Open the layout builder to create a new layout from scratch
Import Layout	Import a layout from a JSON file
Load Default Layouts	Import any missing built-in defaults (Movies, Shows, Seasons)

Each layout card shows its name, description, type, and active status.

Per-layout actions: Edit, Deactivate / Set Active, Duplicate, Export, Delete

Different layouts can be assigned to Movies, Shows, and Seasons independently.

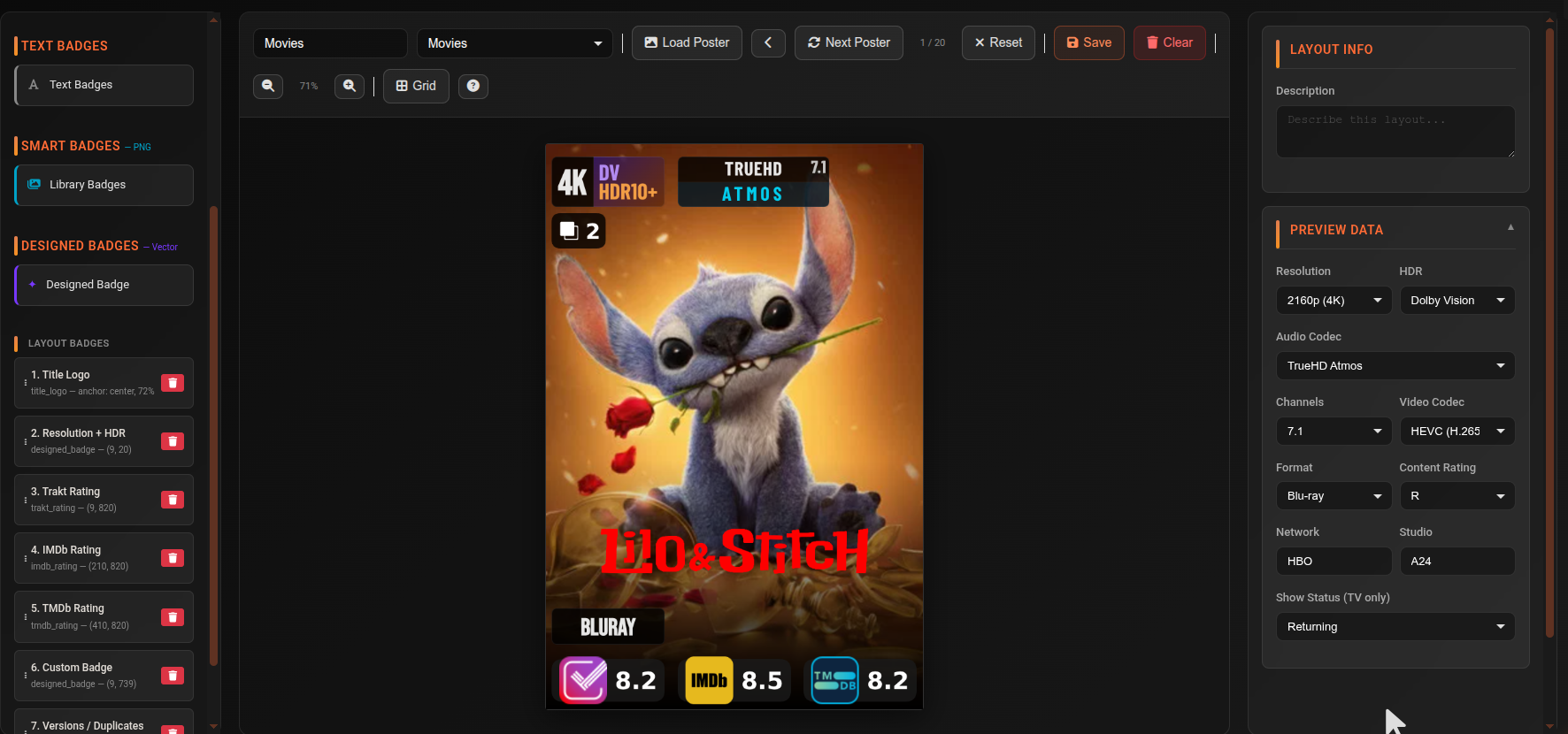

Layout Builder¶

The Layout Builder lets you design overlay layouts by placing and configuring badges on a live preview canvas.

Badge types¶

There are five distinct badge categories in the palette, each working differently:

Tray

A background panel with no content of its own. Place a tray behind other badges to create a unified strip or box — typically at the bottom of the poster. Supports solid or gradient fills, borders, border radius, and opacity control.

Text Badges

The most versatile type. Renders text onto the poster using a {{variable}} template. Supports a background box, an optional icon to the left or right, full font customisation (family, size, weight, colour, alignment), and vertical stacking for two-line labels.

Presets cover every common data type — select from the Badge Type dropdown:

Preset	What it shows
IMDb / TMDb / Trakt Rating	Rating score with service logo
RT Critics / RT Audience	Rotten Tomatoes score
Resolution	`4K`, `1080p`, `720p`, etc.
HDR Format	`DV`, `HDR10+`, `HDR10`, `HLG`
Audio Codec	`TrueHD Atmos`, `DTS:X`, `DD+`, etc.
Audio Channels	`7.1`, `5.1`, `2.0`
Video Codec	`HEVC`, `AVC`, `AV1`
Format / Source	`REMUX`, `WEB-DL`, `WEBRip`, `HDTV`
Network	TV network name
Studio	Production studio name
Content Rating	`PG-13`, `TV-MA`, `R`, etc.
Show Status	`Returning`, `Airing`, `Ended`, `Canceled`
Versions / Duplicates	Count shown only when multiple versions exist
Custom Badge	Any combination of static text and `{{variables}}`
File Match	Conditional — see below

Smart Badges (Library Badges)

Image-based badges. Instead of rendering text, the system selects a matching PNG image from your Badge Library (/overlays/badges) automatically based on the item's metadata. You control the size and position in the layout; the correct image is chosen at render time. If no matching asset exists for a given item, the badge is silently skipped.

Badge Library categories and their available slots:

Category	Slots
Audio Codec	AAC, Dolby Atmos, Atmos Standalone, DD+ Atmos, Dolby Digital, Dolby Digital+, DTS, DTS-ES, DTS-HD, DTS-HD HRA, DTS-HD MA, DTS:X, FLAC, MP3, PCM, TrueHD, TrueHD Atmos
Video Codec	AV1, AVC, HEVC, VP9
Resolution	480p, 720p, 1080p, 2160p/4K
HDR Format	Dolby Vision, DV+HDR, DV+HDR10, DV+HDR10+, HDR, HDR10, HDR10+, HLG
Format / Source	Blu-ray, DVD, HDTV, WEB-DL, WEBRip

Upload your own PNG badge images via the Badges tab or at /overlays/badges. Each slot can have one image — upload to the slot that matches the metadata value you want to display. Custom variation slots can be added for metadata values not in the default list.

Designed Badges

Procedurally rendered vector badges — no image uploads required. Each preset generates a styled badge at render time using the item's actual metadata. Select a preset from the dropdown to control what data is shown:

Preset	What it shows
Custom (manual text)	Static text or custom layout you configure manually
Resolution + HDR	Resolution and HDR type combined in one badge
Resolution	Video resolution only
HDR Format	HDR type only
Audio Codec	Audio codec name
Audio Channels	Channel layout only
Audio Codec + Channels	Codec and channels side by side
Audio Stacked (codec / channels)	Codec and channels stacked vertically
Video Codec	Video codec name
Format / Source	Release source (e.g. `REMUX`, `WEB-DL`)
IMDb Rating	IMDb score
TMDb Rating	TMDb score
Trakt Rating	Trakt score
RT Critics	Rotten Tomatoes critics score
RT Audience	Rotten Tomatoes audience score
Network	TV network name
Studio	Production studio name
Content Rating	MPAA/TV content rating
Show Status	Current show status
Versions / Duplicates	Version count badge

Title Logo

Renders the title onto the poster. When Enable Textless Posters is on and a textless poster is found, the title is rendered as a clearlogo PNG from TMDB — the official transparent title treatment. If no clearlogo exists, falls back to text in the configured font. This is the main reason to use textless posters: place the title exactly where you want it rather than relying on the baked-in title from a standard poster.

File Match badge¶

The File Match badge is useful for flagging attributes that aren't available as standard metadata — for example, EXTENDED, DIRECTOR'S CUT, REMASTERED, or a specific encode group present in the filename.

How it works:

Add a Text Badge and set the type to File Match
Enter a Search Term — the badge only renders if this text is found in the video filename (case-insensitive)
Optionally enter a Display Text — shown on the badge instead of the search term. Leave empty to use the search term itself.
Toggle Use icon instead of text to show an icon (configured in the Icon section) rather than text

Use the Background, Icon, and Text / Value sections to style the badge exactly as you would any other badge. The canvas preview always shows the badge so you can design its appearance.

Examples:

Search term REMUX → badge appears only on remux files, displaying REMUX
Search term extended, display text Extended Cut → styled label on extended editions only
Search term x265 with an icon → icon badge visible only on x265 encodes

Badges tab¶

Browse and manage badge PNG assets. Badges are auto-selected at render time based on the media item's metadata (codec, resolution, HDR format, etc.).

Shows a summary of badge types, total variations, and uploaded assets. Click Open Badge Library to manage badge assets at /overlays/badges.

Activity tab¶

A chronological audit log of all overlay operations.

Filter by action type:

Overlay Sync, Cleanup
Generate / Regenerate / Generate All / Regenerate All
Remove / Remove All
Layout Created / Updated / Deleted
Sync Library
Season Generate / Regenerate / Remove
Poster Reset

Entries are paginated (50 per page) and colour-coded by result (success, failed, partial).

Settings¶

Overlay settings are accessible directly from the Overlay Management page via the Settings button in the top action bar — no need to navigate to the Settings menu.

Click Settings (top right of the Overlay Management page) to open the Overlay Settings modal:

Setting	Default	Description
Enable Overlay System	Off	Master toggle. When enabled, overlay sync tasks run automatically and apply media info badges to Plex posters. Requires Plex URL and token to be configured.
Enable Textless / Clean Posters	Off	When enabled, cli_debrid fetches a language-neutral (textless) poster from TMDB as the base image — these have no baked-in title text so the Title Logo badge can render cleanly at your chosen position. Use the Title Logo badge in the layout editor to add the show or movie title as a transparent clearlogo PNG (with text fallback if no clearlogo exists). The Title Logo badge is only available in the layout editor when this setting is on. Note: Not all titles have textless posters on TMDB — if none is found, the standard English poster is used as fallback.
Media Server Data Path	`/plex_data`	Path to the Plex Media Server data directory. Required for the poster cleanup task to delete old uploaded overlay versions directly from the filesystem.
Ratings Check Interval (days)	`7`	How often to re-fetch ratings (IMDb/TMDB/Trakt/RT) and show status to detect changes. Set to `0` to check every sync run. Version count changes are always checked every sync regardless of this setting.
Items Per Sync Run	`200`	Maximum number of shows/movies processed per overlay sync run. Higher values clear backlogs faster but each run takes longer (~1s per item).

Poster Reset:

Use these when migrating from another overlay app (Kometa, PMM, etc.) or to clear any foreign overlays. Overlays will not be re-applied automatically after a reset — use Generate All when ready.

Option	Description
Reset All Posters	Reset ALL posters to clean originals from TMDB
Review & Reset Selected	Opens a selective grid to choose specific items to reset

Top-level actions¶

Button	Description
Regenerate All	Force re-render all overlays for movies, shows, and seasons — overwrites existing
Remove All	Remove all overlays from the entire library and restore original posters

Long-running operations show a Task Progress overlay with a live progress bar, item counter, and failure count. Click Continue in background to hide the modal while the task runs.

Automatic regeneration¶

When overlays are enabled, newly collected items are automatically queued for overlay generation. Configure the check interval via the Settings button on the Overlay Management page, or under Settings → Additional Settings → Overlay Settings → Ratings Check Interval.

Scheduled tasks

Task	Default interval
Overlay Sync	Every 1 hour
Overlay Cleanup	Every 24 hours

Adjust intervals or trigger manually in the Task Manager under the Features tab.
